Brand:

Vauth Sagel

Description:

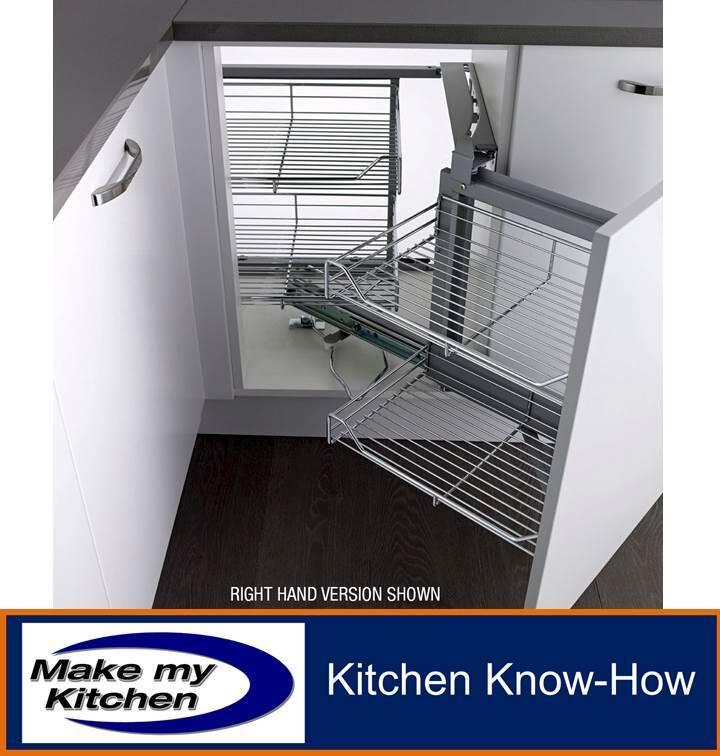

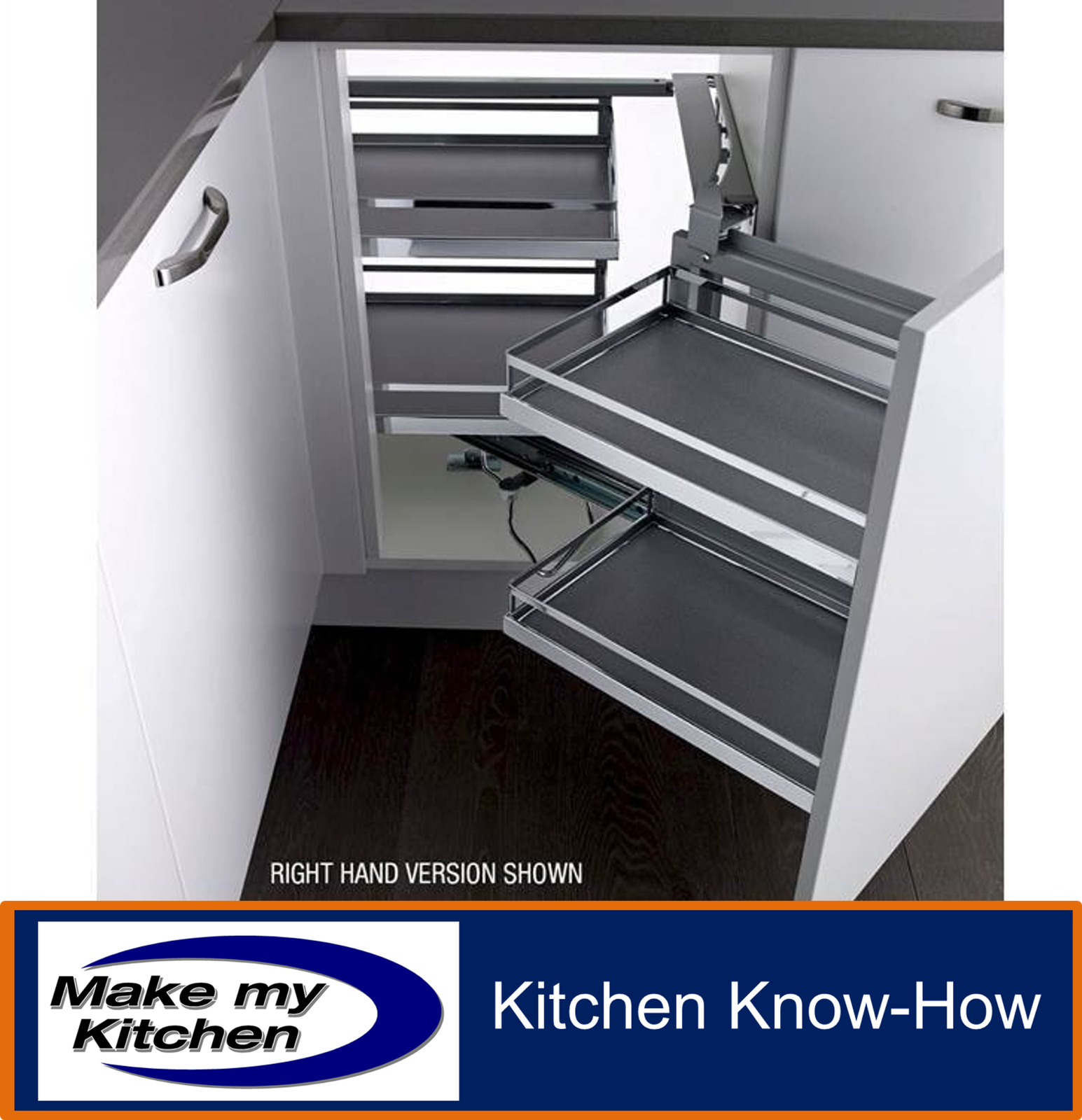

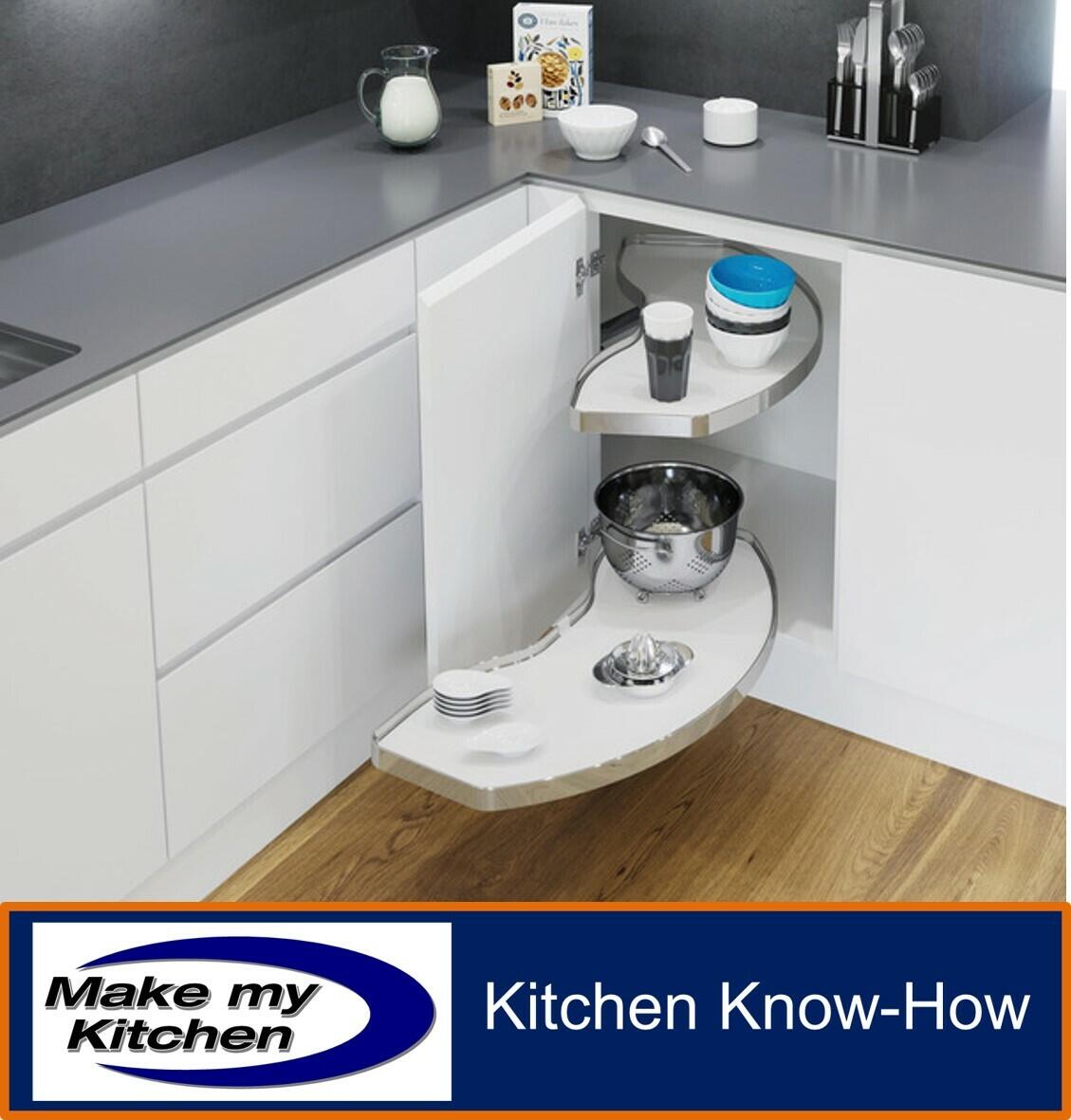

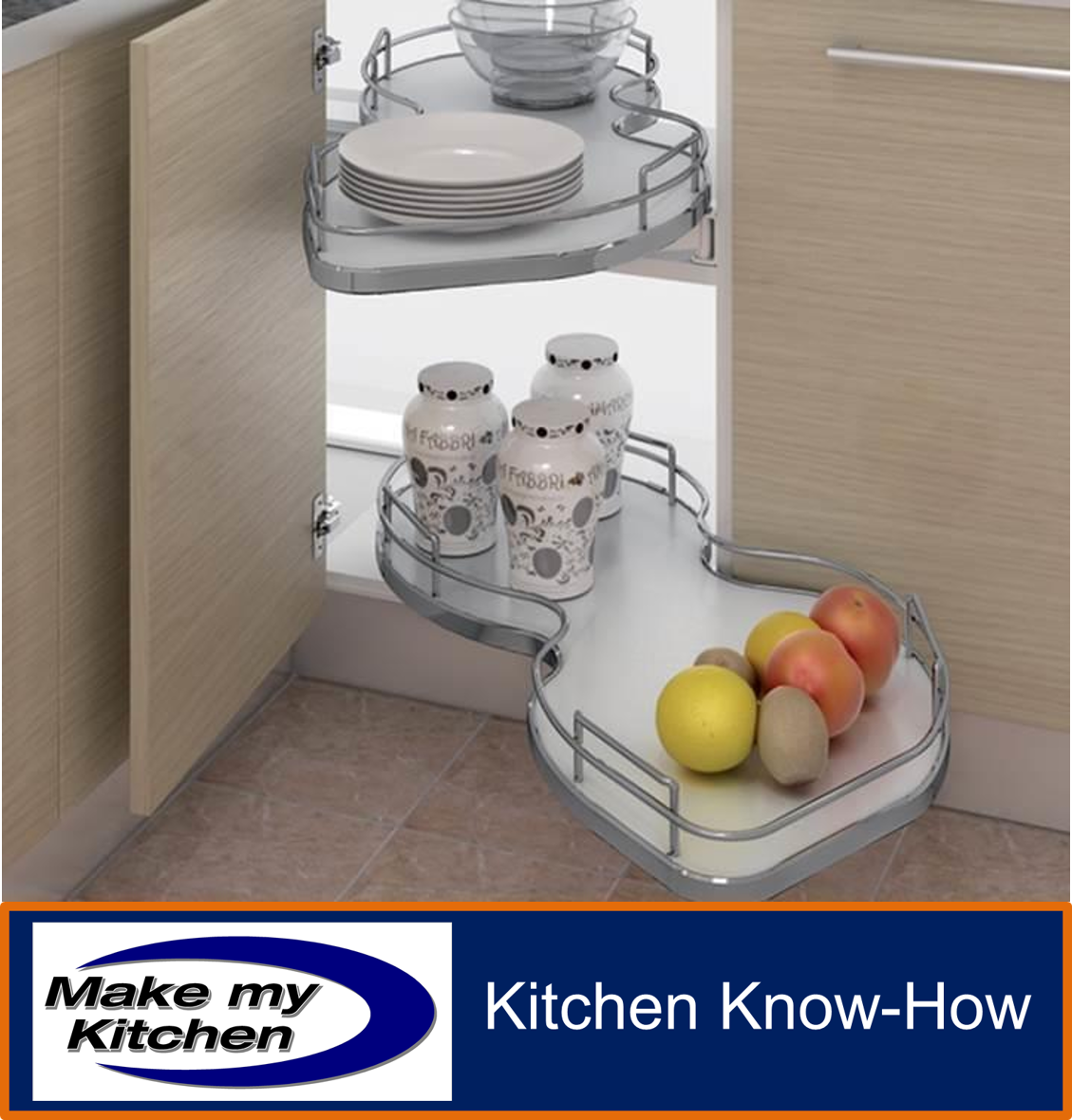

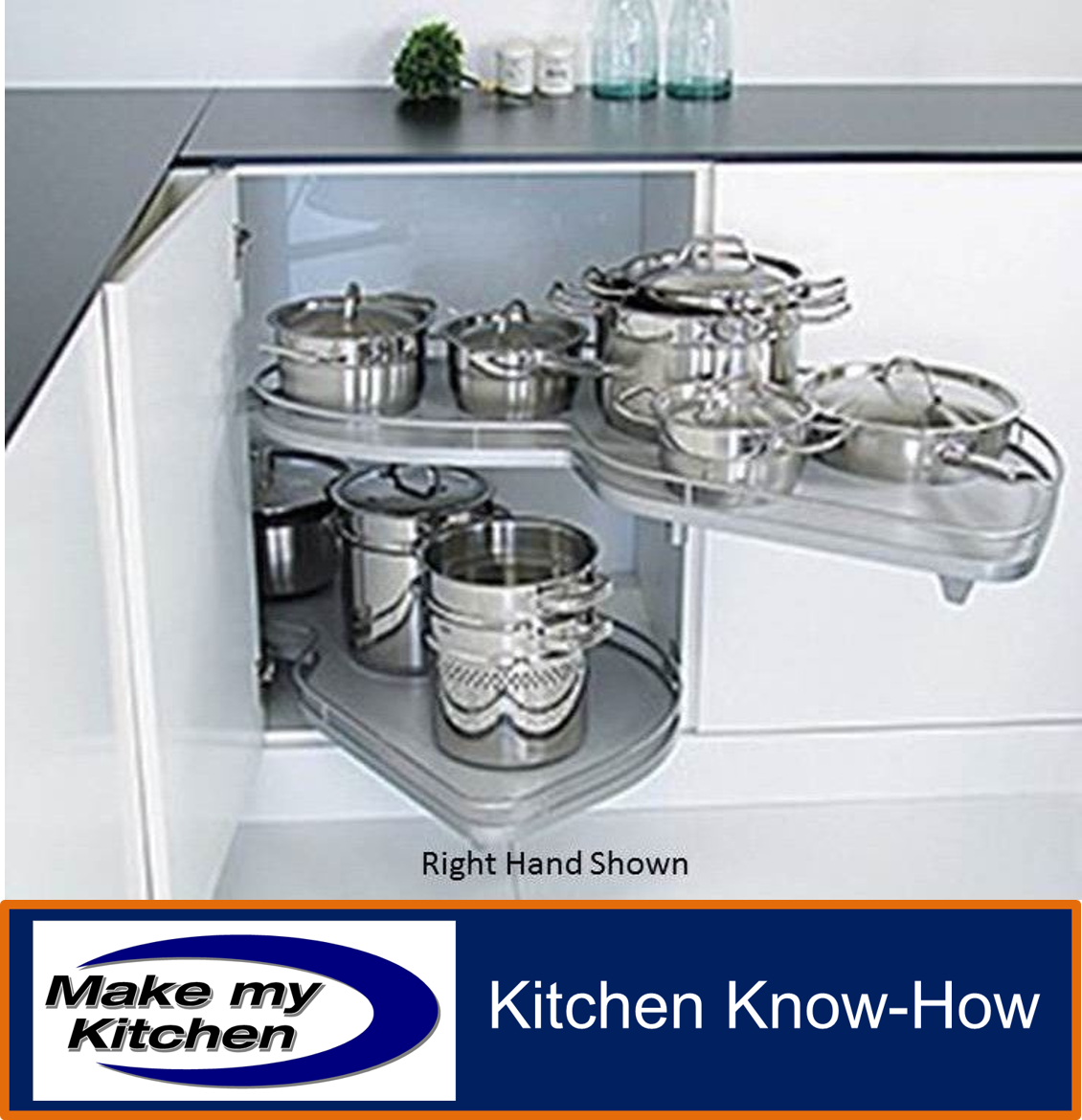

The Cornerstone Swing by Vauth-Sagel is a pull out corner storage solution with a capacity of 18 kg per shelf.

Easy assembly - only the support tube needs to be mounted

Swing movement of the shelves allows free access to adjoining cabinets

Simple height adjustment even when installed

Optional door attachment, modular design

Unhanded

Large area shelves

Soft close damping available as an optional extra

Fits Unit Size:

800mm, 900mm, 1000mm, 1200mm Unit

Fits Door Size:

400mm, 450mm, 500mm, 600mm

Guarantee:

10 Years manufacturers

Specification:

Application Suitable for 900, 1000 or 1200 corner base cabinets

Shelves pull out independently

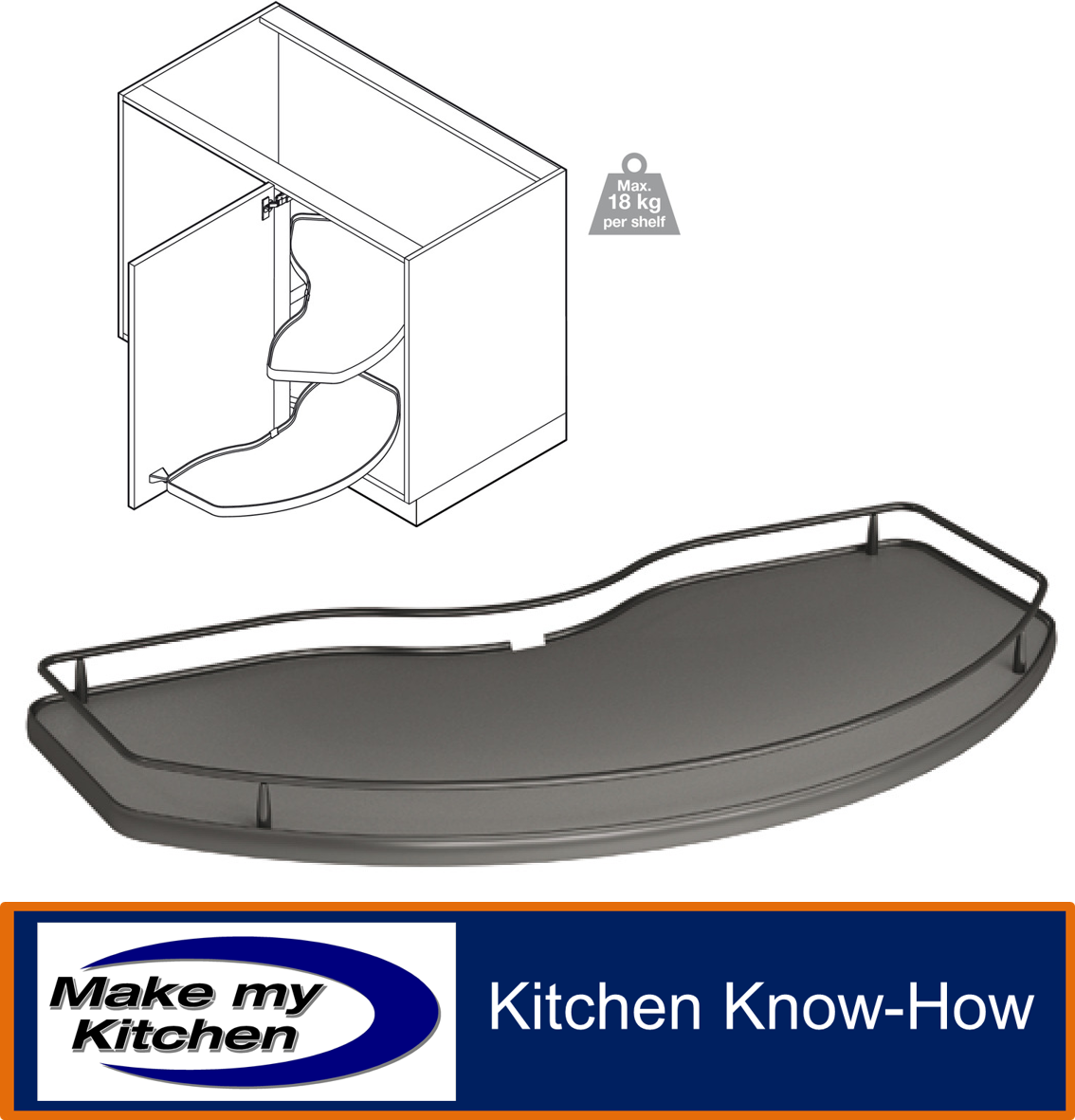

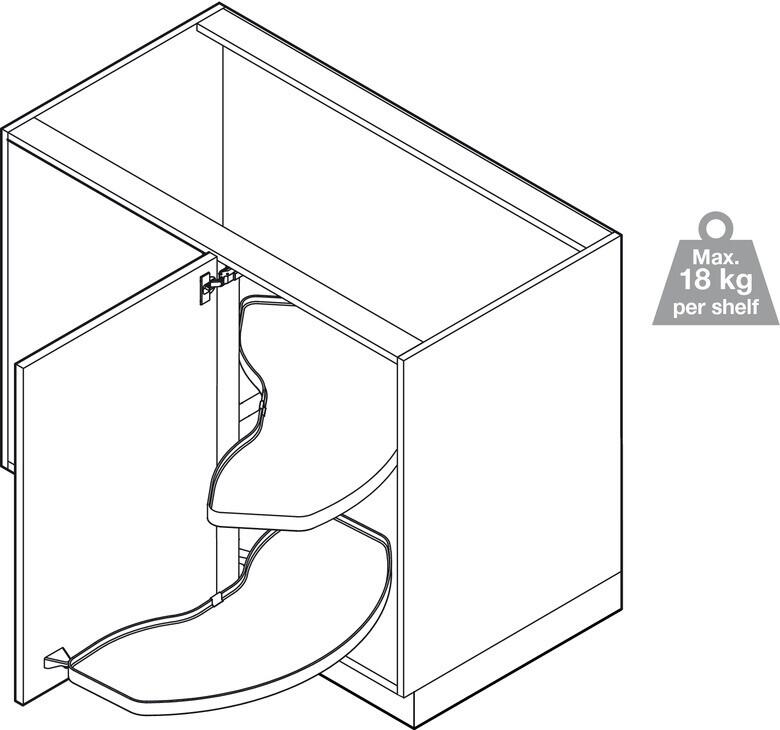

Load bearing capacity Max. 18 kg per shelf

Installation Screw fixing

Single fixing point on cabinet centre post

Internal cabinet depth min. 490 mm

Installation height Min. 610 mm

Finish White shelves

Polished chrome edge

Material Laminated wooden shelves

Set Includes:

2 x shelves

1 x pull-out and pivoting mechanism

Fitting instructions
