Brand:

Vauth-Sagel

Quality German Made

Soft Close:

Yes

Description:

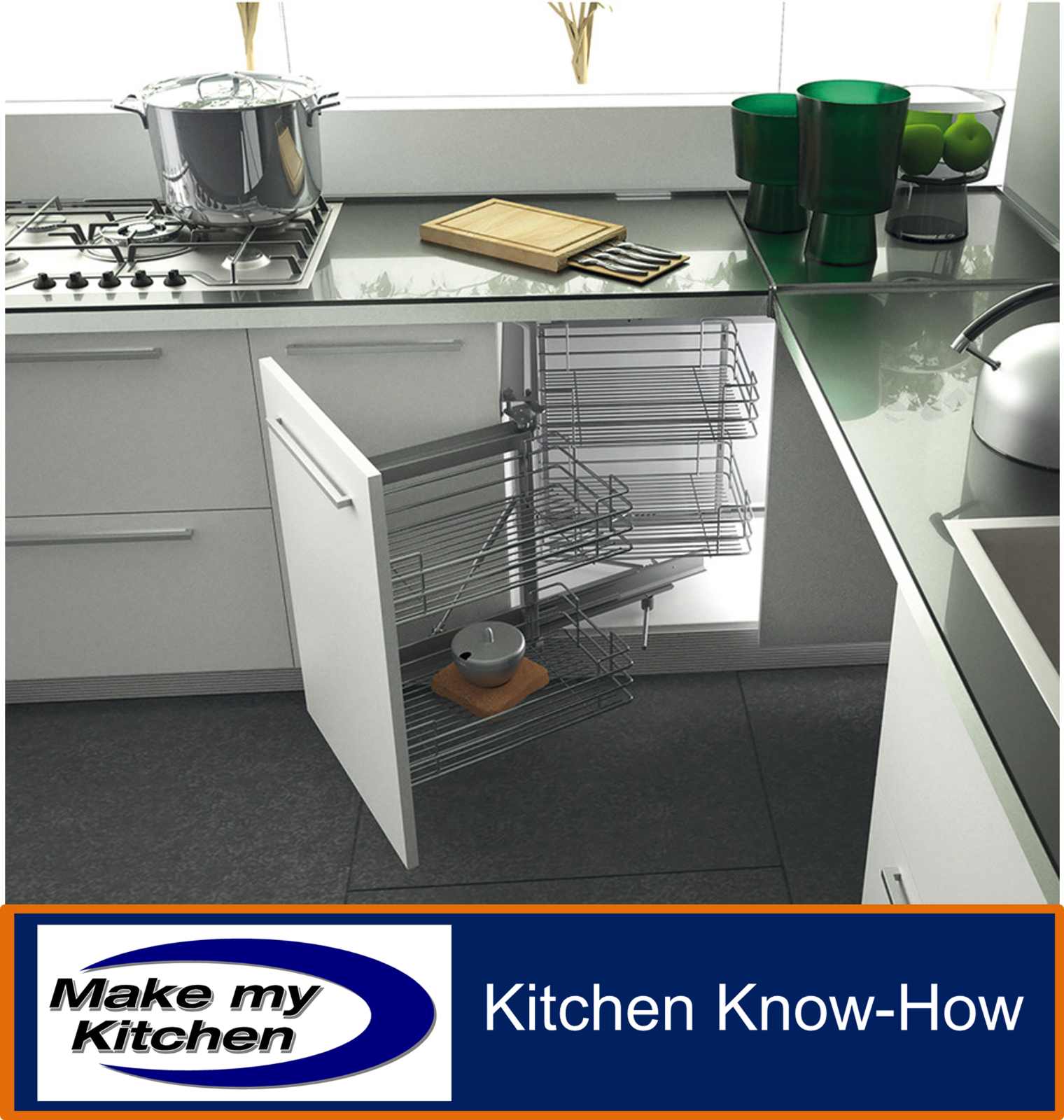

VS COR Fold Magic corner solution

Function:

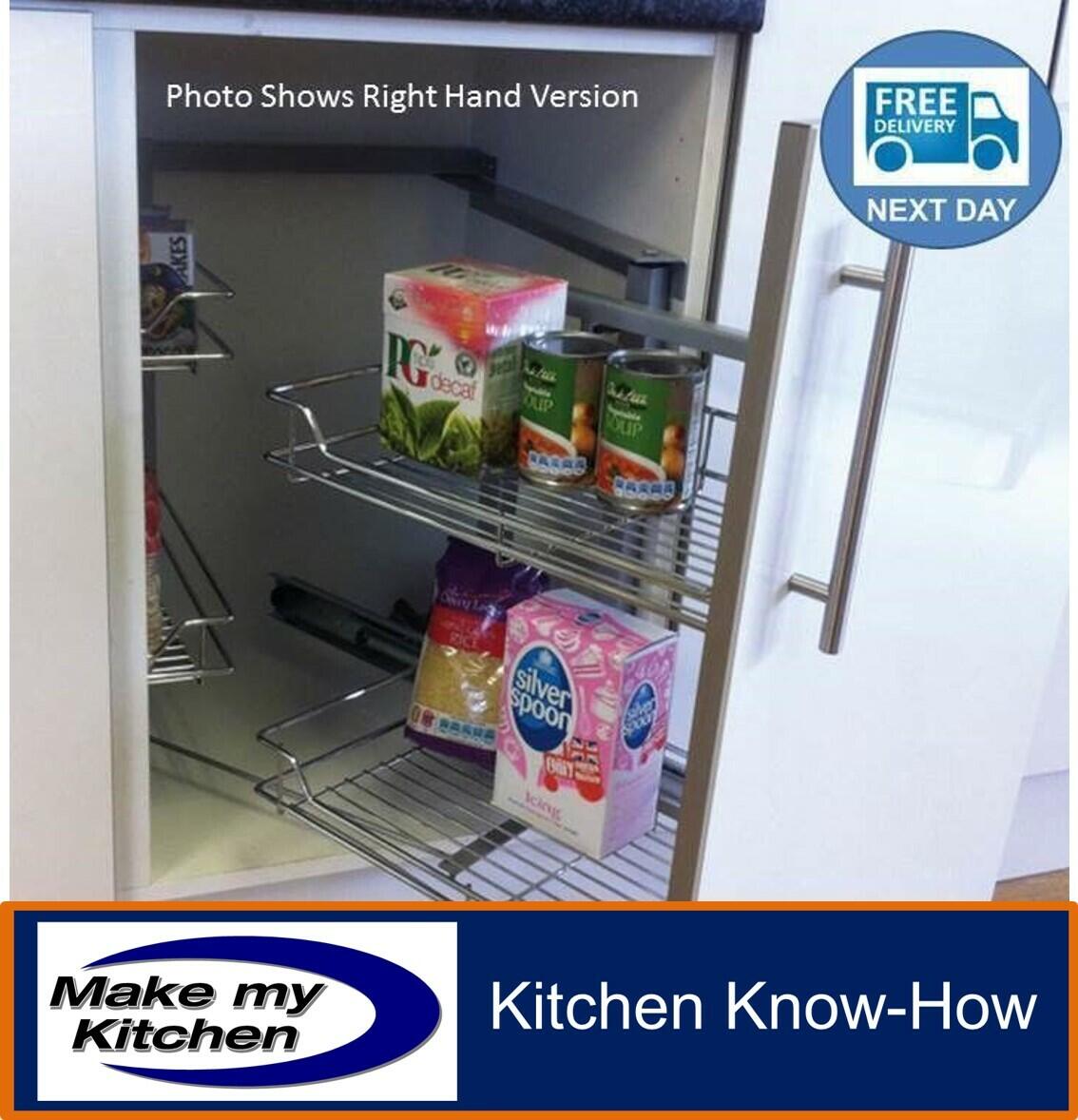

Upon opening, the front baskets automatically

swing away leaving free access to the back basket,

making all baskets easily accessible when the unit is fully opened.

Fits Unit Size:

900mm, 1000mm, 1200mm

Fits Door Size:

450mm, 500mm, 600mm

Guarantee:

10 Years manufacturers

Specification:

• Installed height: 530 mm

• Built-in depth: 485 mm

• For minimum cabinet width 900 mm, can also be used in 1000 or 1200 mm cabinets

Set Includes:

- Rear hanging frame and base mounting track; silver epoxy coated tubular steel

- Door frame with pivot; silver epoxy coated tubular steel

- Back frame; silver epoxy coated tubular steel

- Door frame follower; fiber glass improved plastic

- Door panel hanging plates; silver coloured steel, 3 way adjustable, to suit 450, 500 and 600 mm door widths

- Storage baskets (rear); silver painted steel, max. load carrying capacity 9.5 kg

- Storage baskets (door); silver painted steel, max. load carrying capacity 8 kg

• Fitting instructions
