Brand

Ninka

Description

One2Five Waste Bin System

German Design & Quality

Fits Into Matrix P Drawer box and soft close runners which are included

A versatile bin system available various sizes and combinations listed below

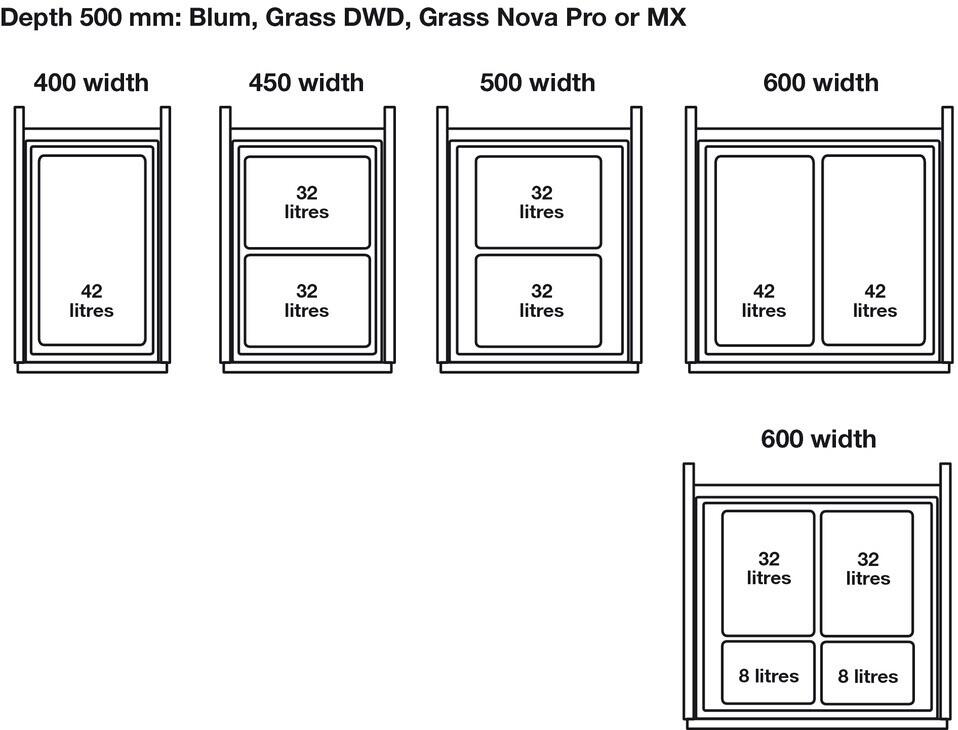

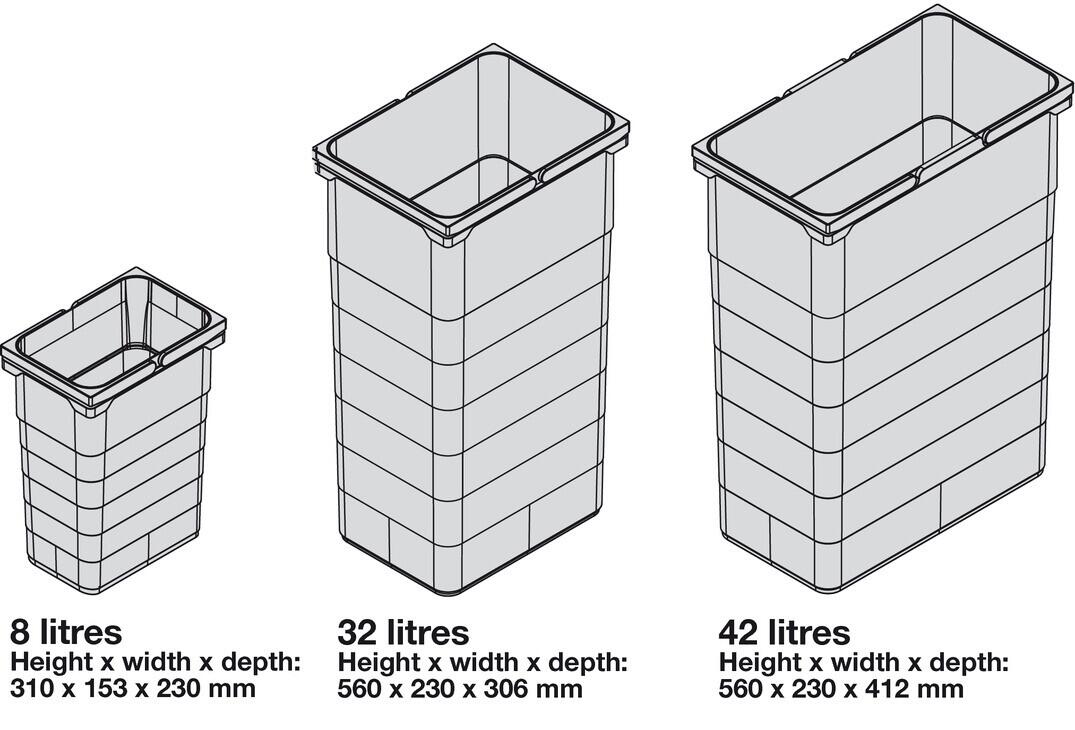

Sizes/Combinations

For a 400mm Unit 1 x 42L Bin

For a 450mm Unit 2 x 32L Bin

For a 500mm Unit 2 x 32L Bin

For a 600mm Unit 2 x 8L 2 x 32L Bins

For a 600mm Unit 2 x 42L Bins

Application

For cabinets with wall thickness 18/19mm, also 15/16mm but spaces must be used

Sets are primarily designed for 500 mm depth drawers

Installation

Sets include a hanging frame to fit specific drawer systems

The frame fits the drawer in place of the drawer base

A door front is fitted to the drawer sides in the usual way plus the One2Five brackets add rigidity

Standard drill patterns

Mounting

Drawer mounting

Installation height

Min. installation height = bin height + 40 mm

Installation depth

Min. installation depth 500 mm. Cabinets with less internal depth can be modified

Finish

Dark grey

Supplied with

1 x pair Matrix drawer sides and runners, 92 mm high, 500 mm depth, in metallic anthracite finish with front fixing brackets (screw fixing)

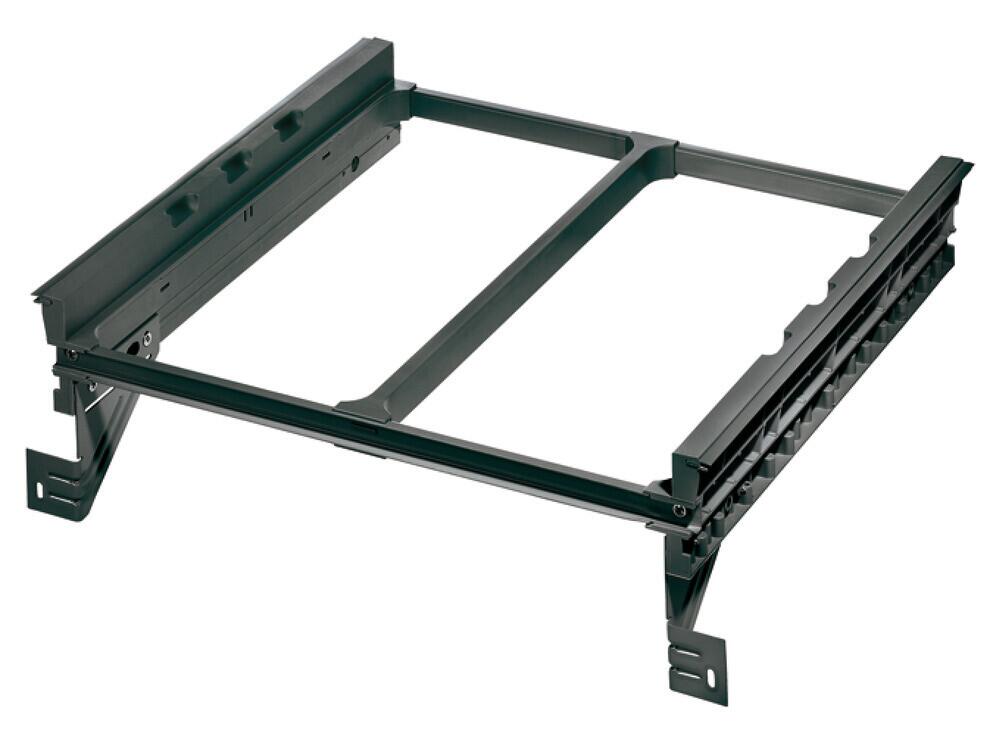

1 x Hanging frame for 400, 450, 500 or 600 mm cabinet width

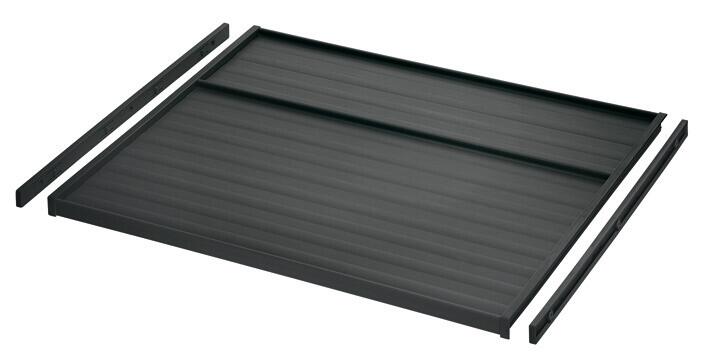

1 x Lid cover plate (shelf)

2 x Lid cover plate suspension rails

2 or 4 bins according to chosen set
