Brand:

Hafele

Soft Close:

Yes

Description:

 Pull and Swing Corner Unit, Magic Corner Solution

Can Be Installed Into An Existing Kitchen

Function:

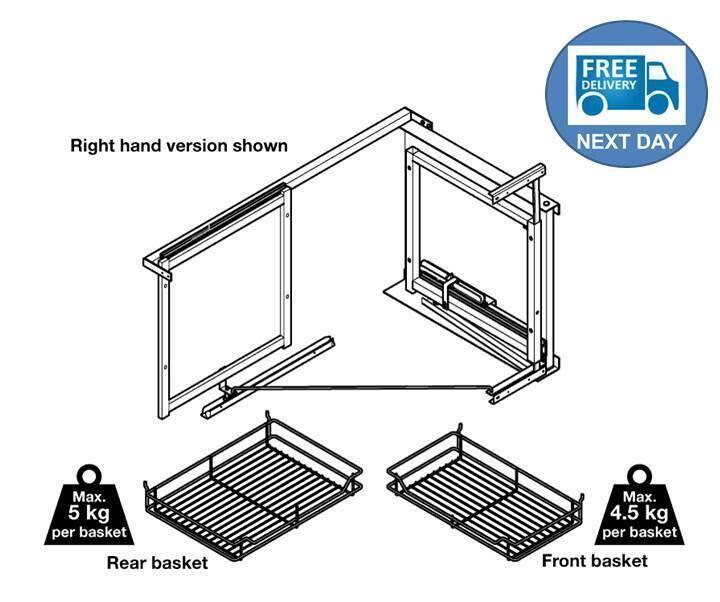

Upon opening, the front baskets automatically

swing away leaving free access to the back basket,

making all baskets easily accessible when the unit

    is fully opened.

Fits Unit Size:

 800mm/900mm Cabinet 400mm/450mm Door

note: to fit to a 900mm cupboard you must use a

100mm spacer wooden block etc

1000mm Cabinet 500mm Door

Guarantee:

  1 Years manufacturers

Specification:

• For minimum cabinet width 800, 900 or 1000mm

• Installed height: 530 mm

• Built in depth: 490 mm

• Left or right handed

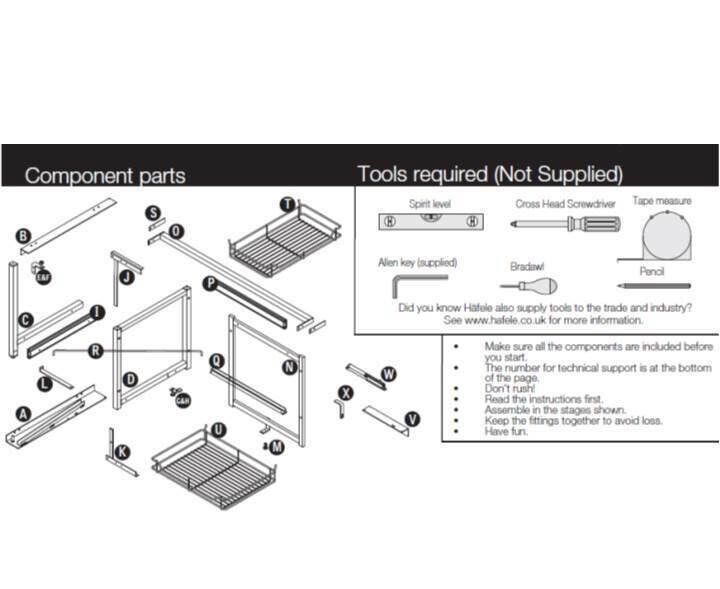

Set Includes:

- 1x Rear hanging frame and base mounting track

-1x door hanging frame and base mounting track

- 1x door frame, door panel hanging plates

- 3 way adjustable and soft close mechanism

-2x Rear storage baskets silver-painted steel

-2x Front storage baskets silver-painted steel

• Fixing materials included
