Brand:

Hafele

Soft Close:

No

Description:

  Pull Out Larder Unit

With 5 Baskets

or Add An Additional Basket

Function:

Centre mounted larder units allowing full access to either

side of the baskets. Bottom ball bearing runner has smooth action

to ensure smooth opening and closing of the pull out.

Fits Unit Size:

300mm,400mm

Height Adjustable 1700-1950mm

Guarantee:

1 Years manufacturers

Specification:

• For installed heights:

- 1700-1950 5x baskets included

• Built-in depth 480 mm

• For cabinet width 300 , 400mm

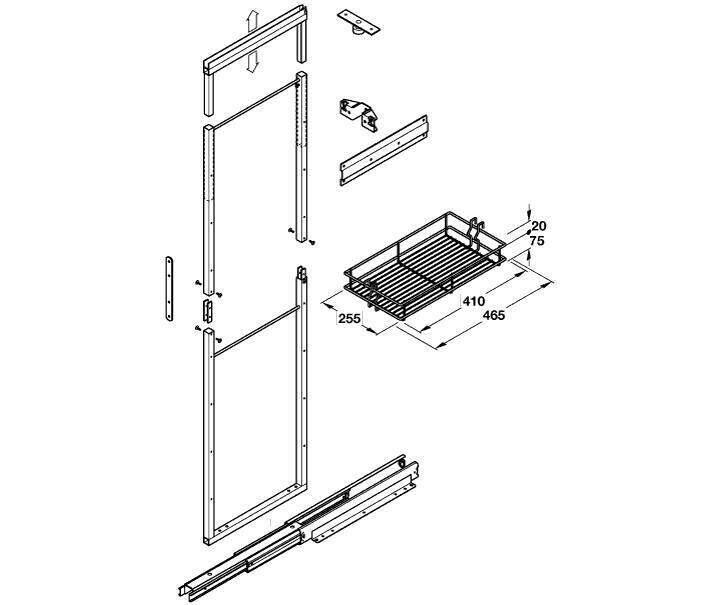

Set Includes:

• Every set comes complete with fixing materials and fitting instructions

- Hanging frame, silver epoxy coated tubular steel, 25 x 25 mm, with mounting accessories

- Ball bearing runner and top roller guide, silver epoxy coated steel, load carrying capacity 100 kg.

 The top guide must be fixed under the top panel or shelf, the runner is base mounted

- Storage basket, heavier gauge chrome plated steel. Specially shaped to hang centrally

- Bracket and crossbar, to fix cabinet doors to larder units, silver epoxy coated steel

- Door connecting strip, silver epoxy coated steel

DOES NOT INCLUDE UNIT OR DOORS
